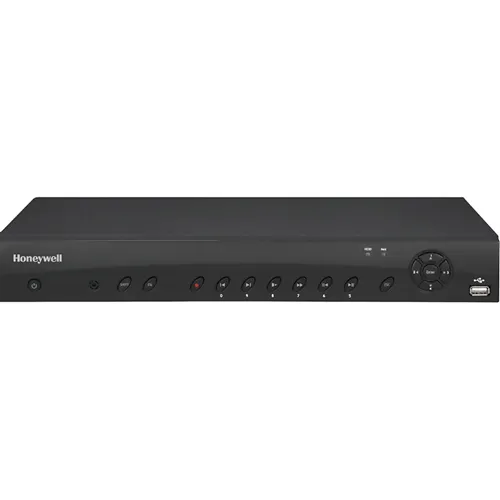

Hybrid 4 MP DVRs

Supercharge your analog security system with Honeywell’s HQA (High Quality Analog) technology for High Definition 4 MP images over your existing coax infrastructure. Our newest HQA DVRs use an over-coaxial cable analog HD video transmission standard to allow long-distance HD transmission at a lower cost. The Performance Series HQA Hybrid 4 MP DVRs are the economic alternative for achieving HD video surveillance while retaining your existing BNC cables and cameras.

Fully-featured DVRs

• High decoding capability for full HD viewing and recording.
• View up to 16 channels simultaneously on your monitor with 4 MP full frame rate preview.
• Record all channels @ 4 MP full frame rate.
• H.264 dual-stream video compression.
• Each channel supports HQA/analog video input; up to 8 additional channels support IP video input.
• Simultaneous HDMI/VGA video output.

Easy to Use

• The Quick wizard and plug-and-play (like traditional DVRs and analog cameras) make setup fast and easy.
• Physical installation within minutes with the help of a comprehensive and easy-to-understand quick installation guide.

Convenient, Flexible Storage Options

• Internal storage: 4-Channel DVRs available with 1 or 2 TB storage (1 HDD). 8-Channel DVRs available with 2 or 4 TB storage (2 HDDs). 16-Channel DVRs available with 2, 4, 6 or 12 TB storage (2 HDDs).
• Store videos and snapshots to external storage such as the client’s PC, through the Internet.
• Store videos and snapshots to an external network storage server such as an FTP site.
• Store videos and snapshots to a USB storage device.

Dynamic, Accessible Monitoring

• Monitor from anywhere using the mobile apps for iOS and Android devices.
• All channels support synchronous playback and smart search (search for video that was recorded because motion was detected in a selected area).

Safety Features

• Configurable motion detection and camera tamper detection settings, including configurable event notifications, such as automatic emails (with attached video or snapshot) and automatic alerts (such as buzzers).
• Remote configuration and firmware updating through Honeywell Viewer web client and the Honeywell Config tool. Password-protected access to the camera’s and DVR’s video and network setup.
• Bidirectional communication for the DVR.

Market Opportunities

• The Performance Series HQA Hybrid 4MP DVRs’ HQA technology makes these DVRs perfect for installations where you want HD-quality video while still using your existing coax infrastructure.
• These HQA DVRs also deliver higher quality video than current 960H analog systems, but at a similar cost.

Immediately Detect and Respond to Events

The Performance Series HQA 4 MP Hybrid DVRs can be configured to automatically detect and respond to events such as motion in the scene, alarm inputs, video loss, and/or tampering.

Automated responses include:

• Sending a notification through email, FTP and/or HTTP.
• Uploading still images at the time of the event through email and/or FTP.
